Ship's Name:
***
IMO:
***
Class:
CCS
Built Place:
South Korea
Ship Type:
AHTS
Navigation Area:
A1+A2+A3
Flag:
China
Built Date:
2003.07
Loa:
68.9 M
Breadth:
15.5 M
Depth:
7 M
Draft:
5M
DWT:
2110T
GT:
2330T
NT:
749T
Deck Area:
471㎡
Deck Loading:
10t/㎡
Capstan:
20T
Tugger:
20T
Bollard pull:
141.35T
Liquid Mud/Brine:
440m³
ME Brand:
Bergens
Main Engine Model:
BRM-9
ME Power:
7950kw
RPM:
750R/Min
Speed:
12K
Aux. Engine Brand:
Caterpillar
Aux. Engine No.:
2T
Aux. Engine Power:
355kw
Oil Consumption:
18.2T/D
Main Engine No.:
Double
Anchor Handling:
YES
Fire Fighting Level:
LEVEL ONE

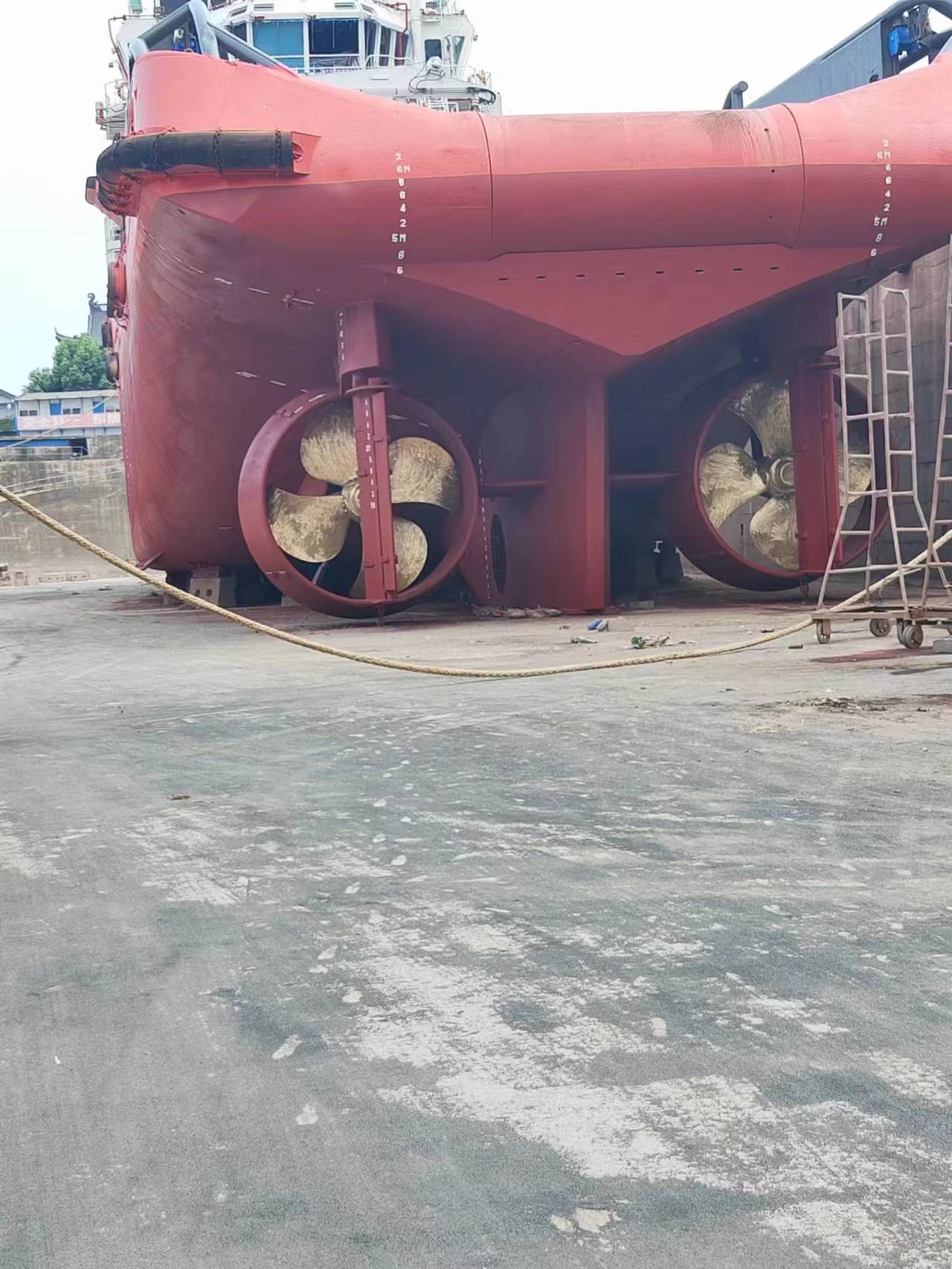

Propulsion type:
CONTROLLABLE PITCH
Positioning System:
DP2
NOx emission standard of diesel engine:
Tier I
Release Date:
2024-03-19
Certificate of Inspection:
Certificate of Ship Ownership:
NO
General Arrangement Plan (GA):
Certificate of Registry:
NO
Ship Equipment List:
Remarks

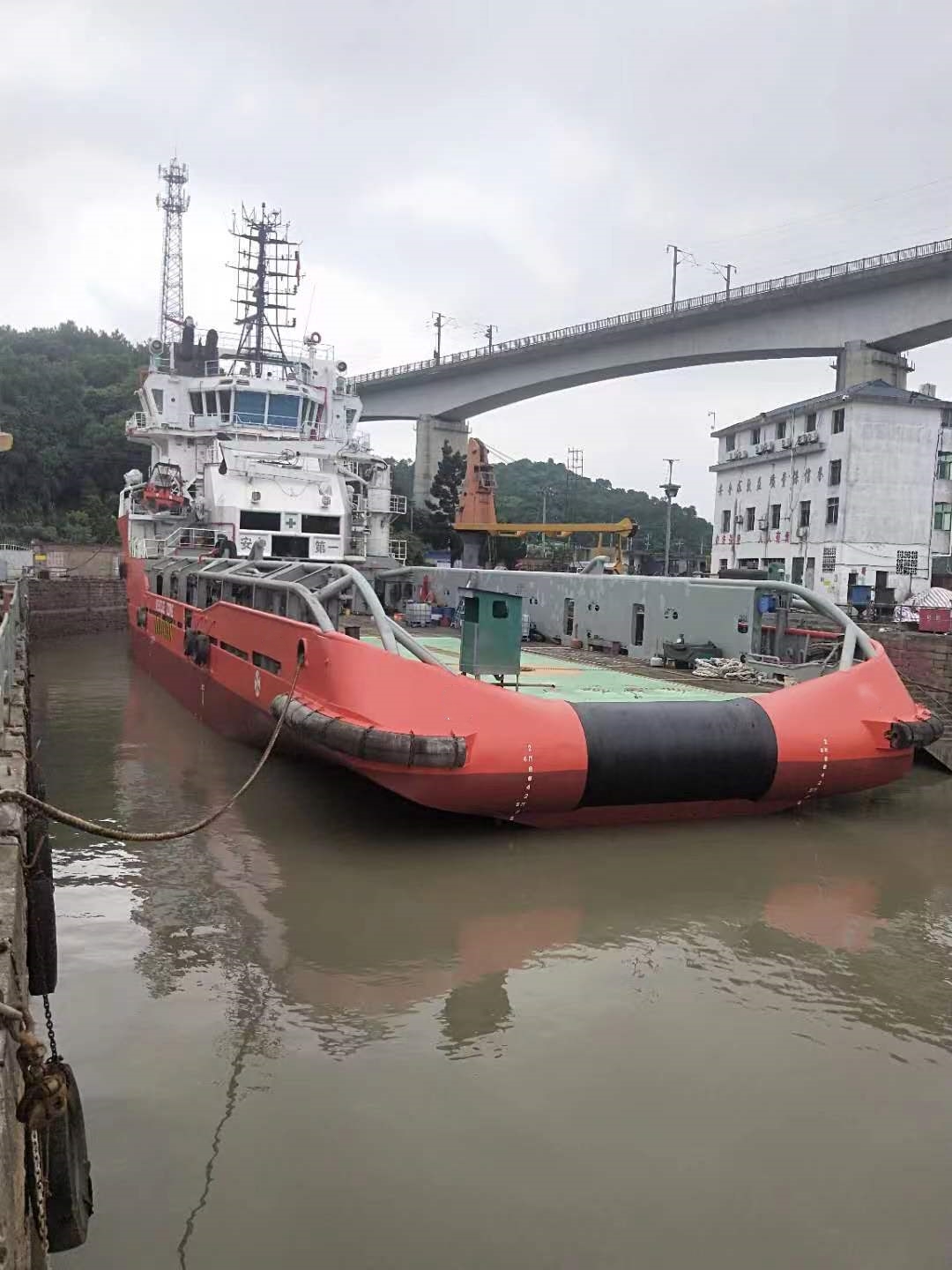

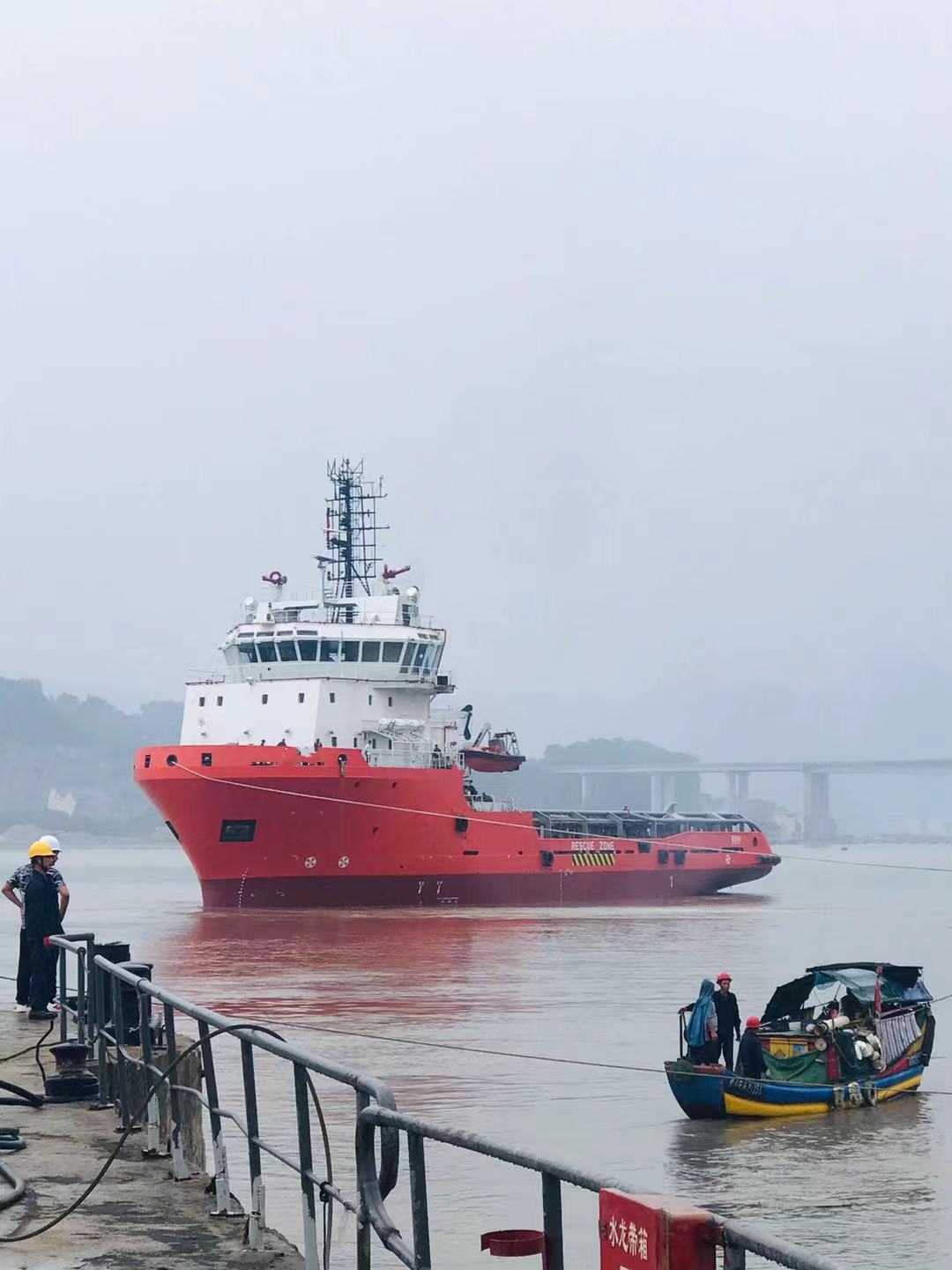

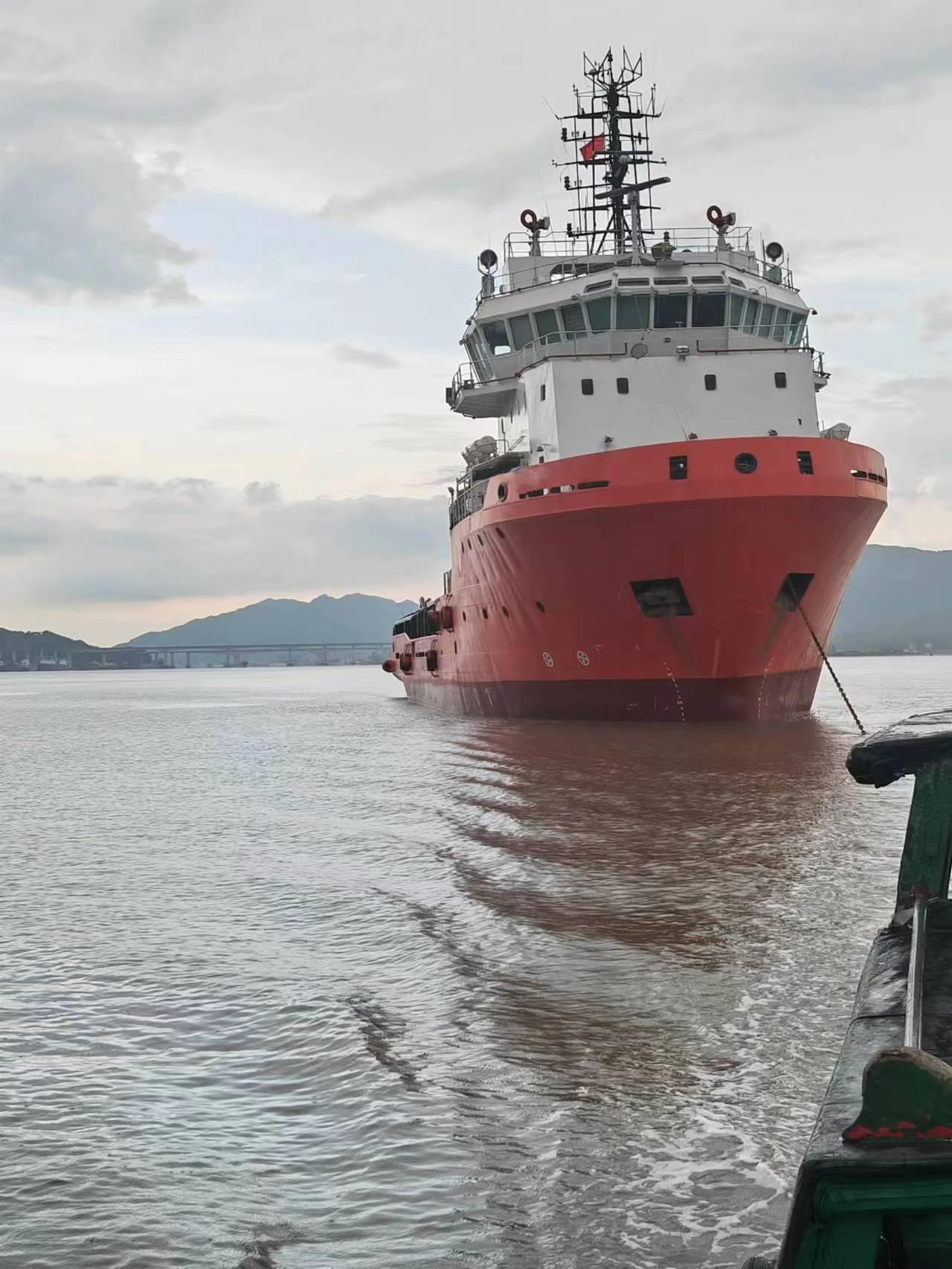

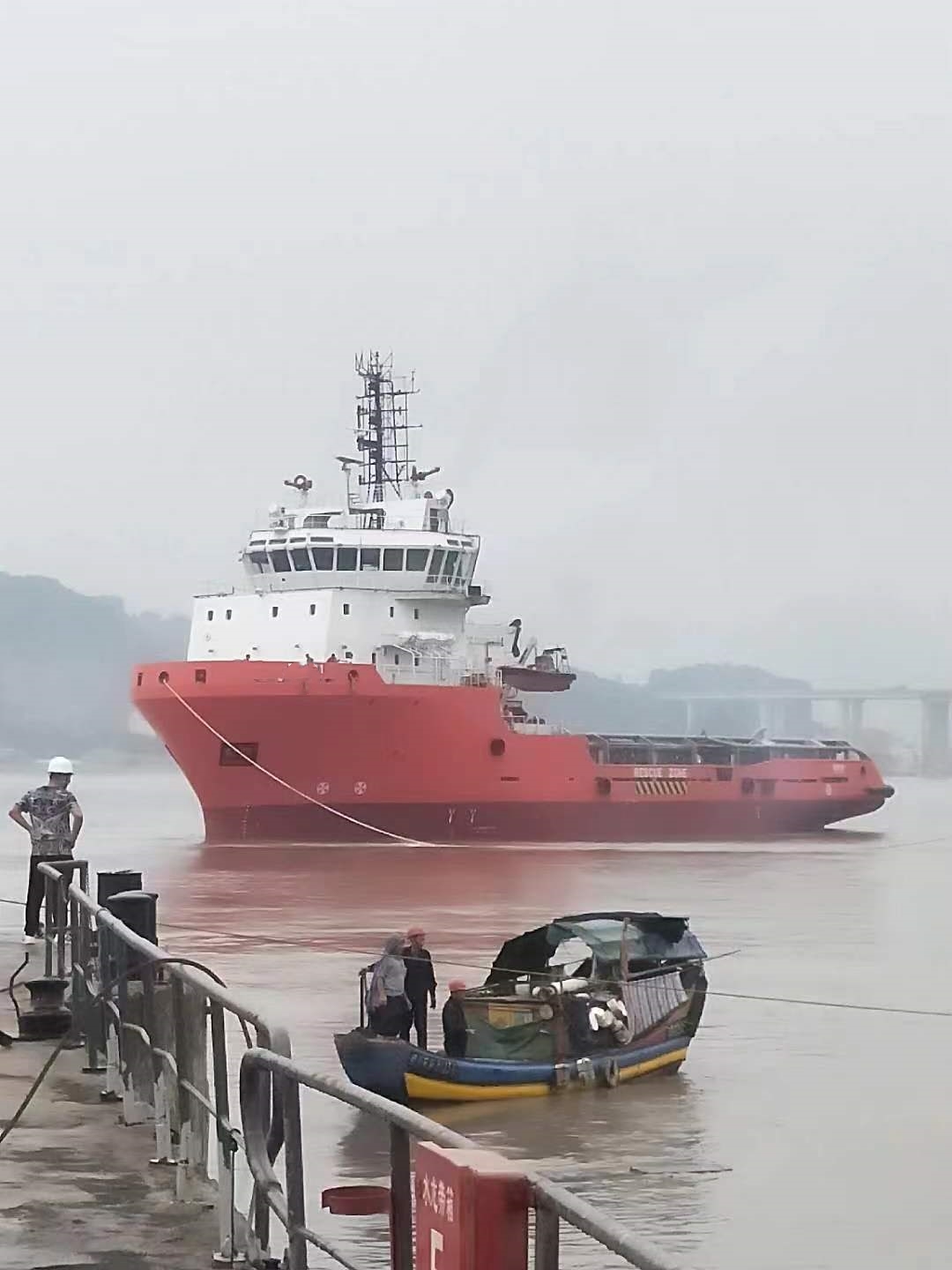

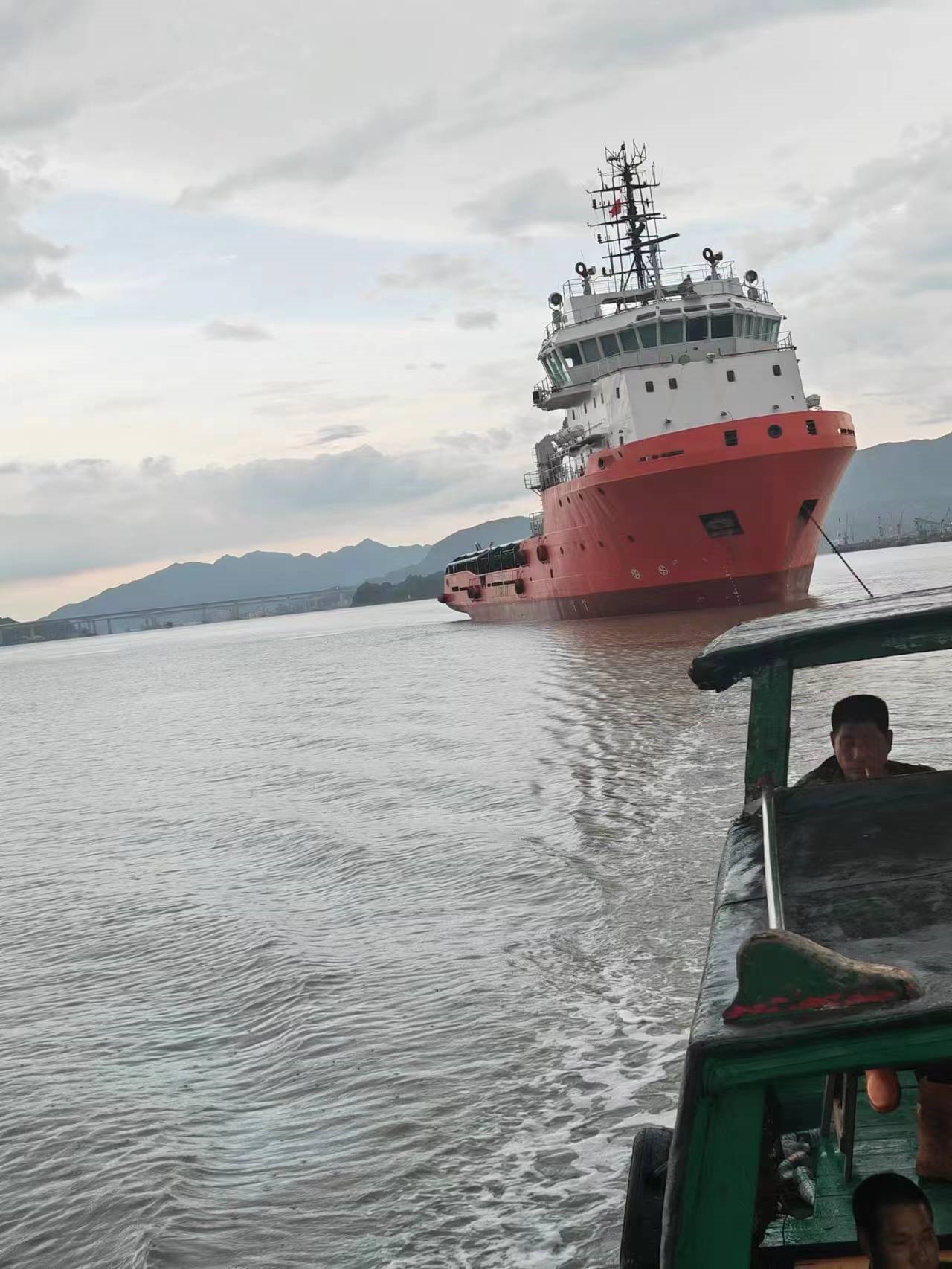

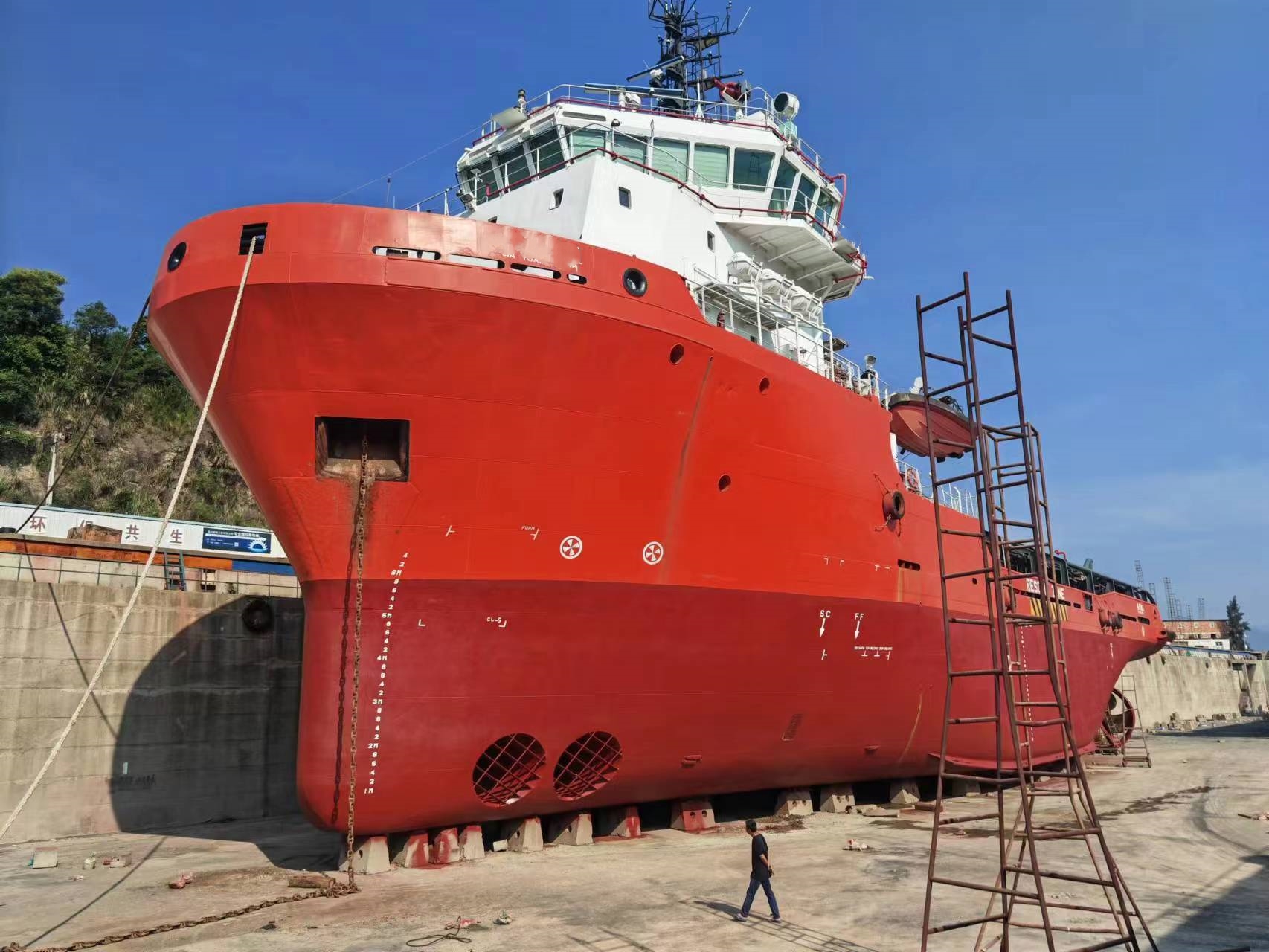

10，800 HP triple purpose tug/anchor tug supply vessel
July 2003 Ulsan lNP Shipyard in South Korea completed/transferred to China CCS Classification Society /
Length 68.9m/ width 15.5m/ depth 7m
Maximum water intake: 5m
Maximum load: 2110 tons
Bollard pulling force: 141.39 tons

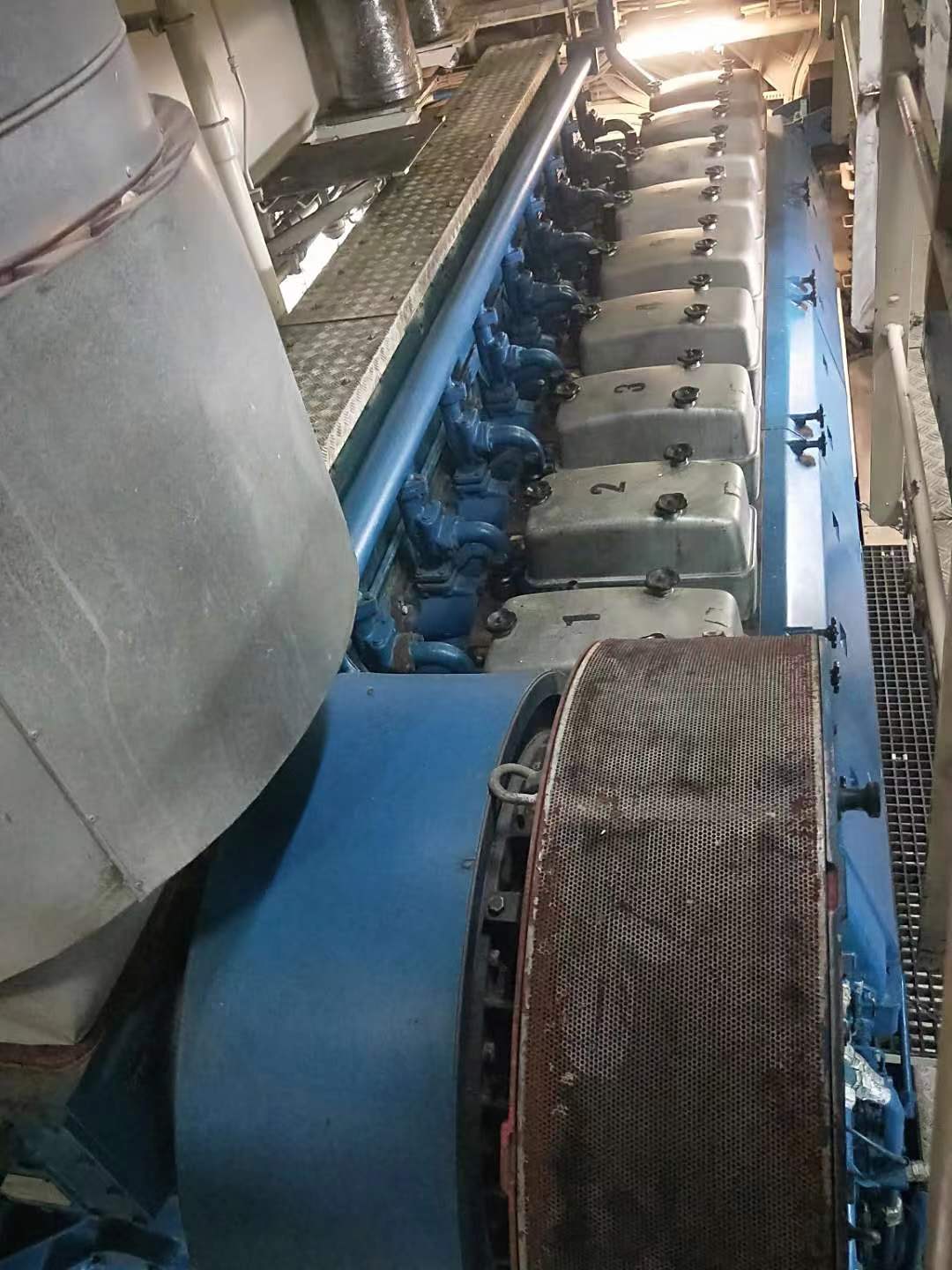

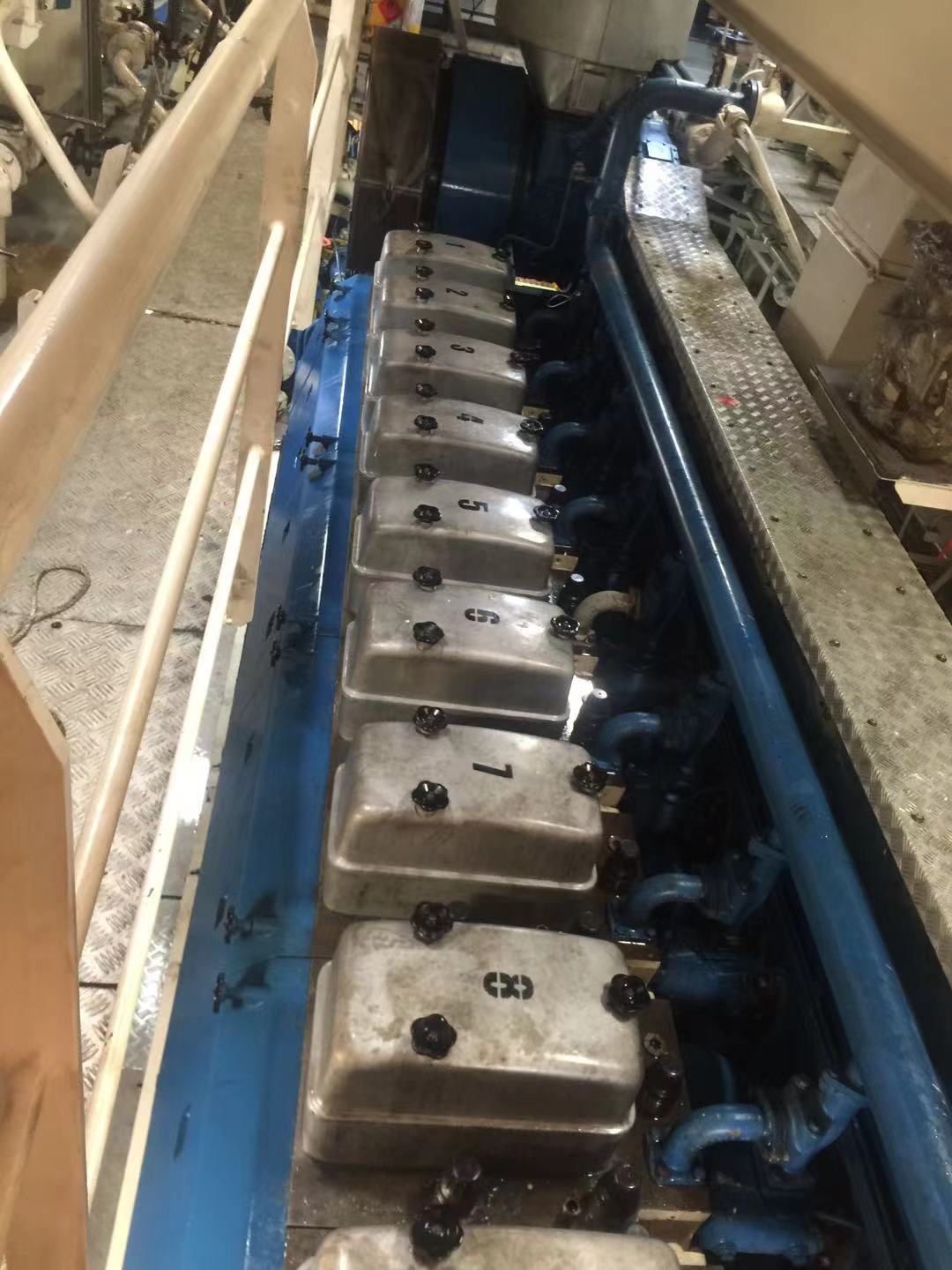

Main engine Wartsila: BERGNG/3975kW two / 10800hp
Maximum speed: 18 knots
Container port: China Five Star Flag
Shipping area: Ocean
Gross ton/net ton: 2332T/749T
Nail surface volume: 417 cubic meters

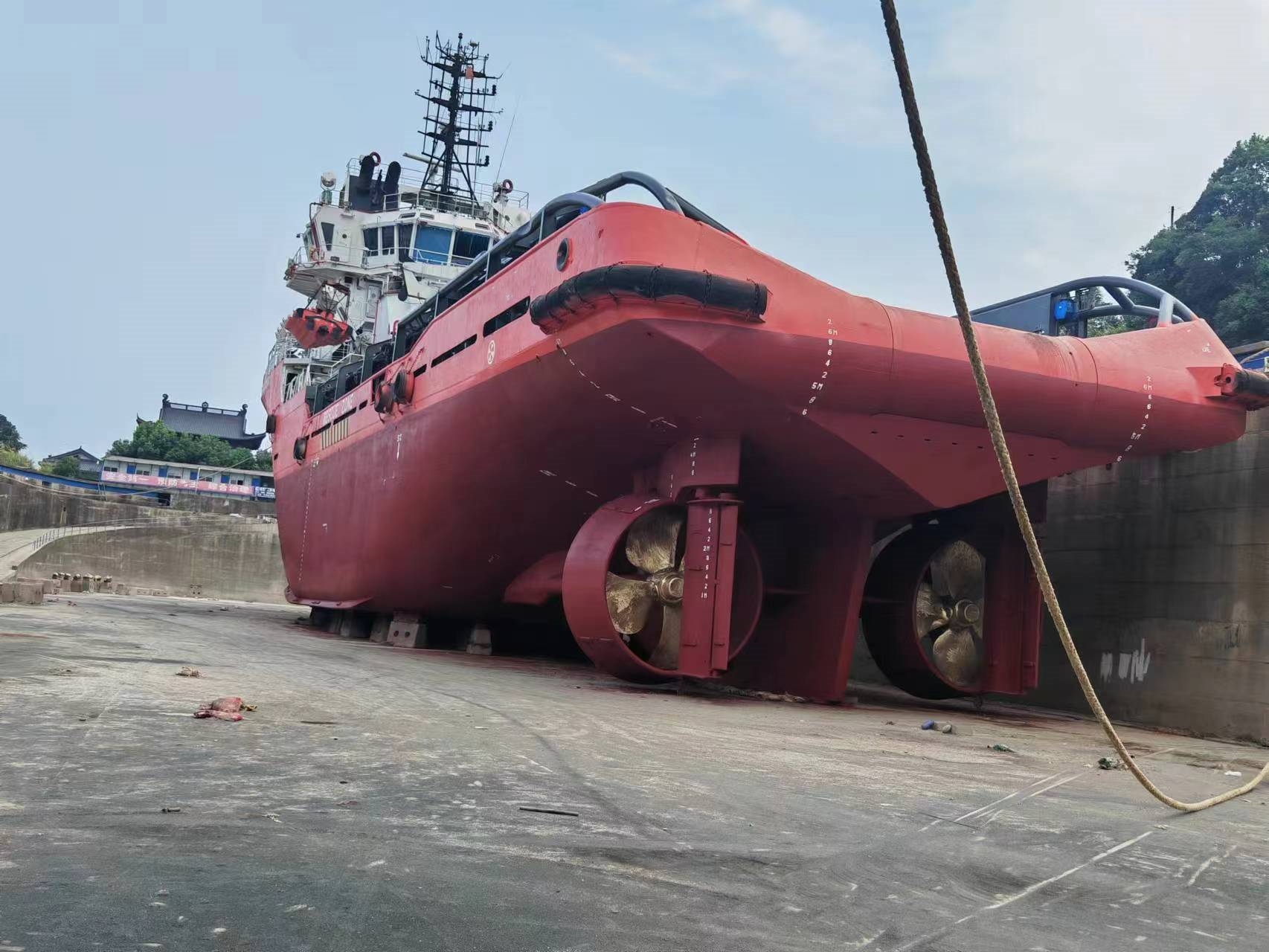

Bow thrust: 791 HP 2
Stern thrust: 791 HP 1

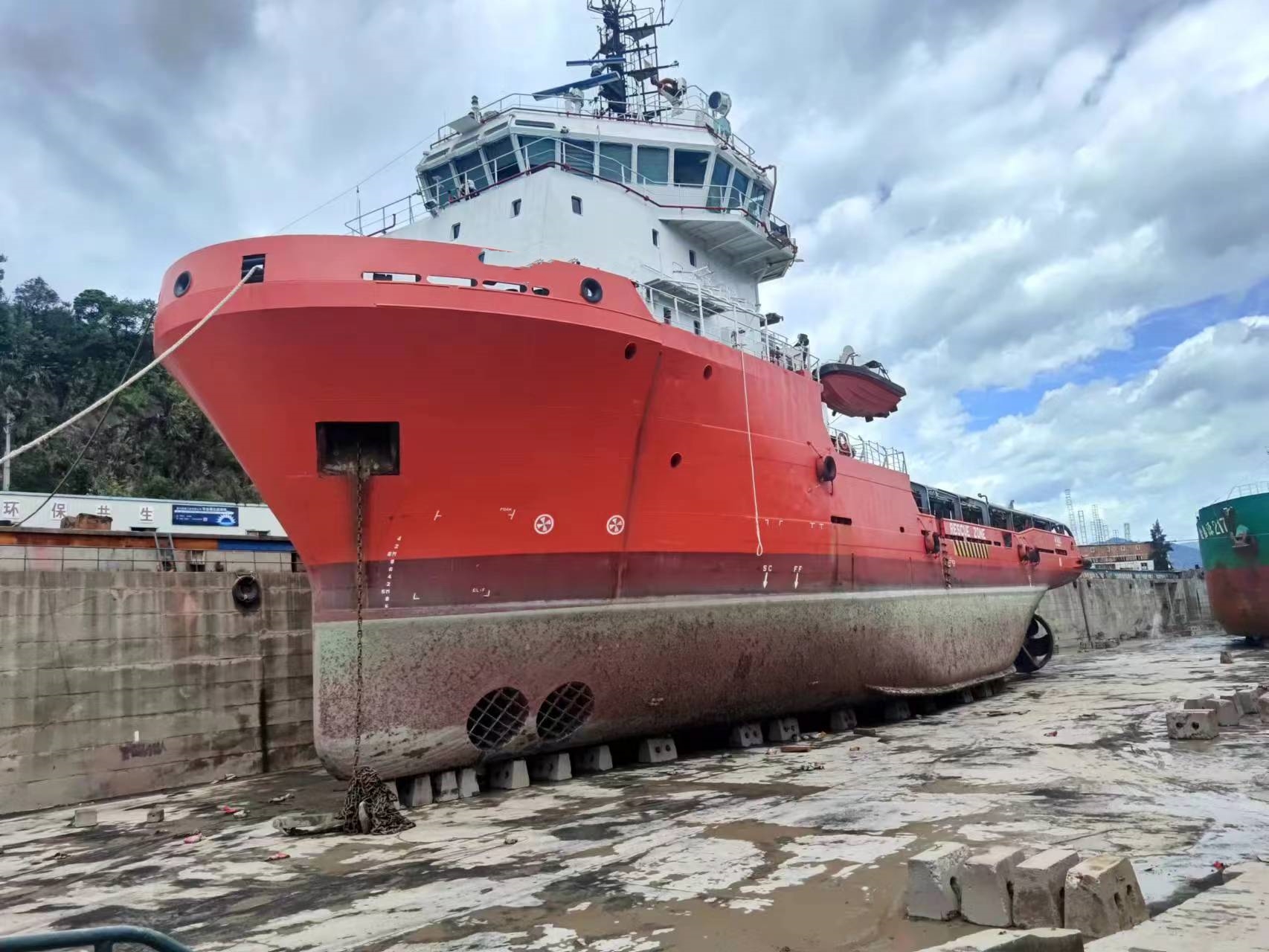

Ship: The maintenance of the whole ship has just been completed
Ship under sail: No loan/transferable
